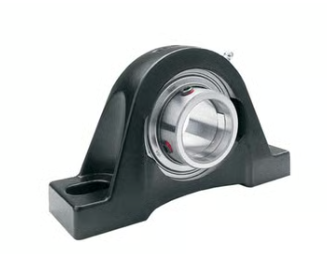

Timken (Fafnir) YAS1 SGT

Pillow Block Ball Bearing Unit - 2-Bolt Base, 1 in Bore, Cast Iron Material, Standard Duty, Non-Expansion Bearing (Fixed)

Specifications

• Mounting Type
  2-Bolt Base
• Bore Type
  Round
• Bore Diameter
  1 in
• Bolt Center To Center Length
  4.1250 in
• Base To Bore Centerline
  1.4375 in
• Duty Type
  Standard Duty
• Locking Device
  Set Screw
• Seal Type
  Contact/Lip
• Housing Material
  Cast Iron
• Expansion Type
  Non-Expansion Bearing (Fixed)
• Overall Height
  2.8125 in
• Overall Length
  5.5000 in
• Base Width
  1-13/32 in
• Overall Width
  1.3438 in
• Finish Coating
  Uncoated
• Operating Temperature Range
  Maximum of +250 °F
• Radial Dynamic Load Capacity
  3550 lbf
• Radial Static Load Capacity
  1730 lbf
• Max Rpm
  5440 rpm
• Lubrication Type
  Lubrication Fitting
• Series
  YAS
• Replacement Bearing
  GY1100KRRB
• UPC_NO
  087796265790
• Weight
  2.1 lbs
• Locking Type
  Set Screw
• Number Of Mounting Holes
  2
• Product Type
  Pillow Block Ball Bearing Units
