Timken (Fafnir) YCJ1 3/8 SGT

Timken (Fafnir) YCJ1 3/8 SGT

Low stock: 2 left

$242.89 CAD
$242.89 CAD
Sale Sold out

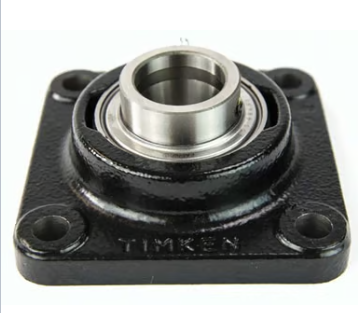

Flange-Mount Ball Bearing Unit - 1-3/8 in Bore, 4-Bolt Flange Mount, Set Screw Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Standard Duty, Contact Seal Seal

Mfr description
YCJ1 3/8 SGT HOUSED UNITS

Specifications

  • Product Type
    Flange-Mount Ball Bearing Units
  • Bore Diameter
    1-3/8 in
  • Housing Material
    Cast Iron
  • Duty Type
    Standard Duty
  • Bolt Center To Center Length
    3.6250 in
  • Bolt Circle Diameter
    5.1250 in
  • Locking Device
    Set Screw
  • Expansion Type
    Non-Expansion Bearing (Fixed)
  • Seal Type
    Contact Seal
  • Overall Length Diameter
    4.6250 in
  • Lubrication Type
    Relubricatable
  • Bore Type
    Straight
  • Radial Dynamic Load Capacity
    6400 lbf
  • Radial Static Load Capacity
    3400 lbf
  • Length Through Bore
    46.4 mm
  • Finish Coating
    Uncoated
  • Max Rpm
    3930 rpm
  • Series
    YCJ
  • Standards Met
    FDA Compliant, USDA Compliant
  • Replacement Bearing
    GY1106KRRB
  • Manufacturer Upc Number
    087796266049
  • UPC_NO
    087796266049
  • Weight
    3.94 lbs
  • Type Of Bearing
    Ball
  • Mounting Type
    4-Bolt Flange
